COSMIC

COSMIC Introduction

System Overview

Cosmic turns password entry into an interactive visual experience. Users prove they know a secret by selecting images, colors, or symbols shown in a fresh random layout each time. Behind the scenes, zero-knowledge proofs confirm the user’s knowledge without revealing the secret itself.

  1. Random Session Seed → unpredictable puzzle every login.
  2. Visual Mapping → secret characters map to symbols via secure shuffling.
  3. User Selection → pick the right symbols; no text to steal or keylog.
  4. Proof-of-Knowledge → server validates choices, learns nothing else.

Benefits include resistance to phishing, key-logging, camera shoulder-surfing, and database leaks—while remaining user-friendly across web, mobile, kiosk, and IoT screens.

Cryptographic Core Components

1. Multi-Layered Randomness

  • Combines hardware RNG, time entropy, server salt, and client noise.
  • Multiple hash rounds scrub bias and expand to several dimensions.
  • Guarantees high-grade unpredictability even if one source weakens.

2. Multi-Dimensional Symbol Mapping

  • Characters shuffled across “visual planes” using non-linear math.
  • Each plane binds to a symbol set (cards, arrows, emoji, etc.).
  • Mapping differs every session—attackers can’t reuse observations.

3. Secure Prime Generator

  • Generates large “safe” primes (p and 2p+1 both prime).
  • Supports commitment scheme and long-term cryptographic strength.

4. Zero-Knowledge Loop

  • User computes commitments in the browser (nothing secret leaves).
  • Server issues a challenge; user responds; server verifies instantly.
  • Outcome: VALID / INVALID with zero leakage.

5. Authentication Chain

Random → Parameters → Symbol Mapping → User Selections → Commitments → Verification

6. Interactive Authentication Demo

Launch the terminal demo below to watch a full login cycle.

Cosmic Auth Demo
cosmic@demo:$ ./run_demo --auto
▶ Initialising secure session…
▶ Generating random layout… done.
▶ Proving knowledge… VALID
Advanced Protocol Details
  • Dimensional entropy expansion yields a high-dimensional search space.
  • Binding + hiding commitments prevent tamper & secret leakage.
  • Merkle batching lowers proof size and verification time O(log n).
  • Deterministic challenge derivation removes RNG bias while staying unpredictable.
  • Optional non-interactive mode via Fiat–Shamir transform reduces round-trips.
Sample Verification Log
✓ Seed (256-bit).............. a8c0 6bb6 …
✓ Prime p (2048 bits)......... found
✓ Safe prime check............ passed
✓ 8 commitments generated
✓ Merkle root................. 83e7 c1bf …
✓ Challenge set {17,92,144}    derived
✓ All responses verified...... ✔ VALID

Security Features

  • Zero-knowledge property — no secrets in transit or at rest.
  • One-time layouts defeat screen recording & replay.
  • Time-bound tokens block delayed submission attacks.
  • Uniform distribution foils statistical pattern mining.
  • Side-channel mitigation — constant-time comparisons.

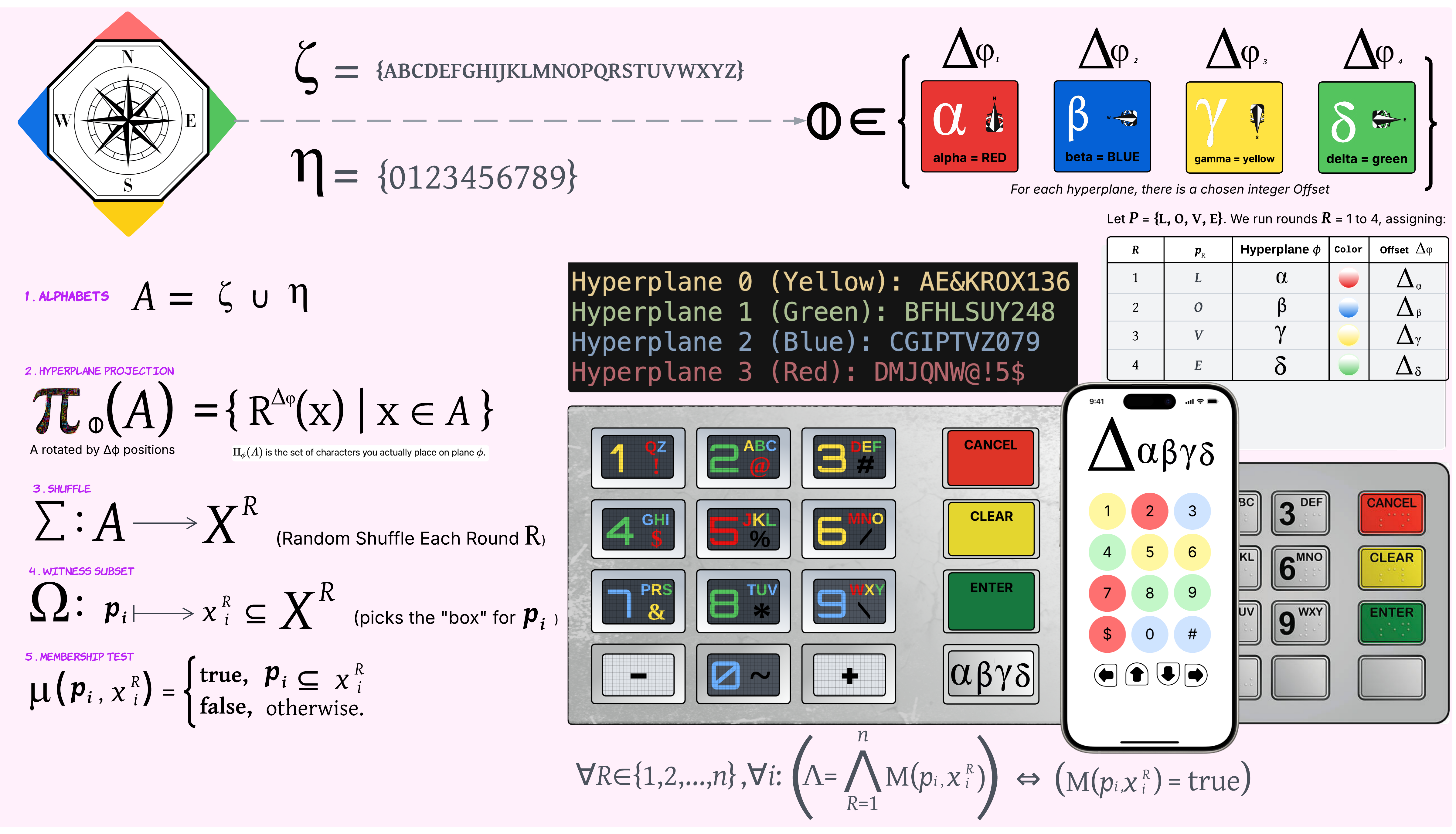

Protocol overview

Protocol data flow

Note: For maximum protection, deploy Cosmic over TLS, enable server-side rate-limiting, and optionally add MFA for critical roles.

Post-Quantum Readiness

Cosmic’s core logic is algorithm-agnostic: you can swap in any post-quantum secure hash or signature scheme once standards finalise. Today we default to SHA-3 and classic ECDSA; tomorrow you can plug in Dilithium/Kyber without changing the user experience.

  • 256-bit+ entropy budget withstands Grover attacks.
  • Modular crypto layer isolates implementation specifics.
  • Migration path documented in /api/crypto-status.

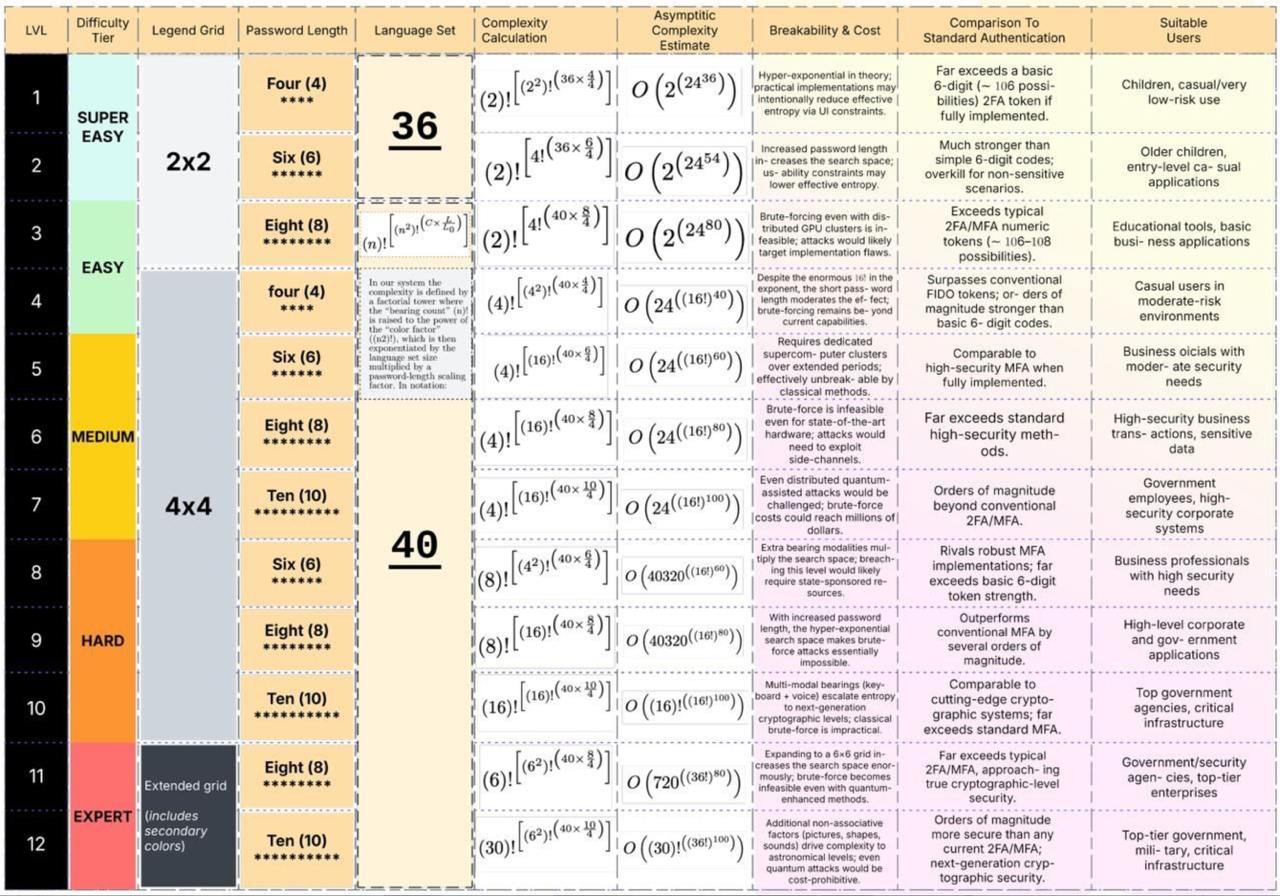

Show Complexity Curve Complexity chart

Implementation Examples

Cosmic can be skinned for any interface:

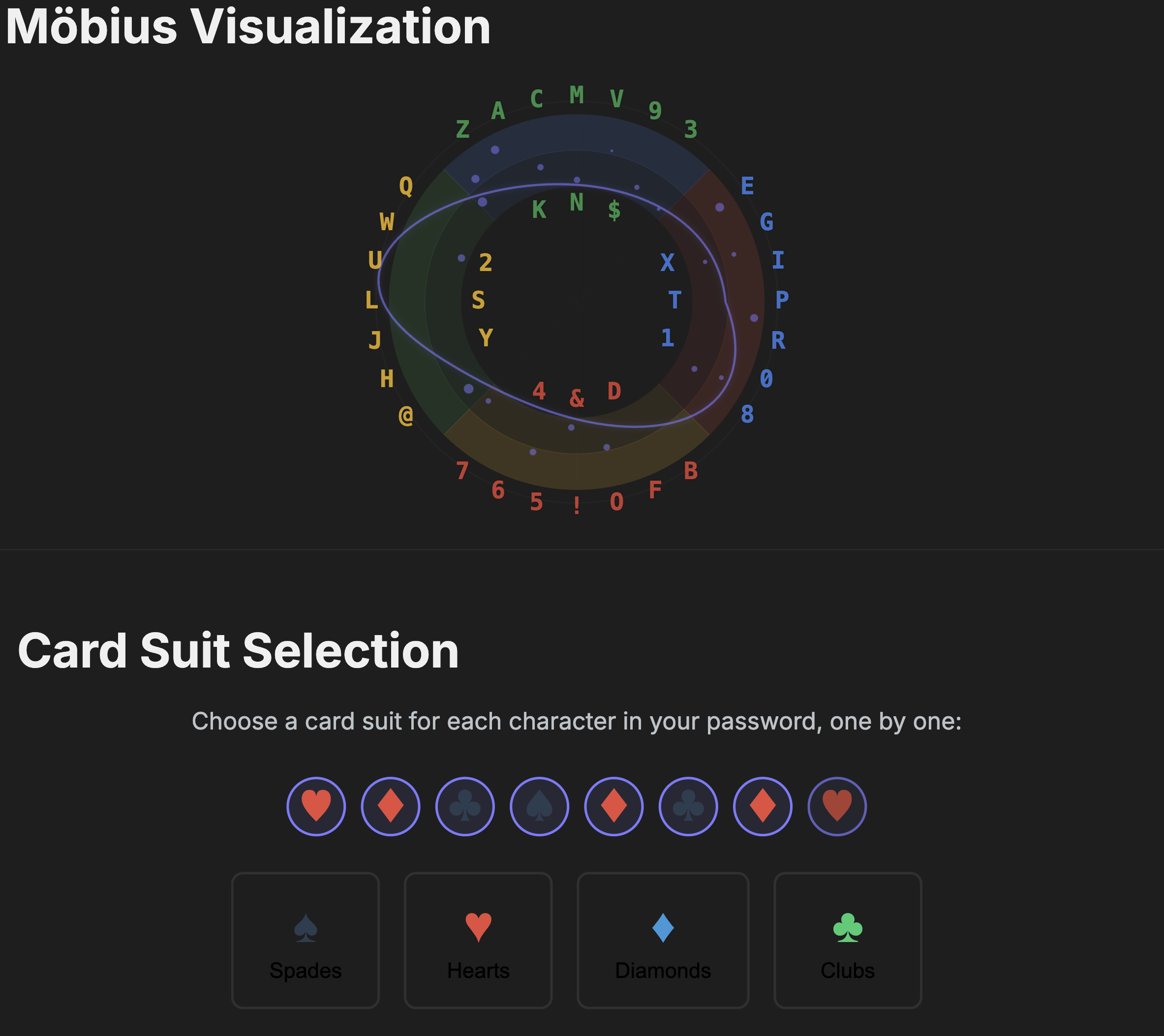

Card interface
Playing-card suite

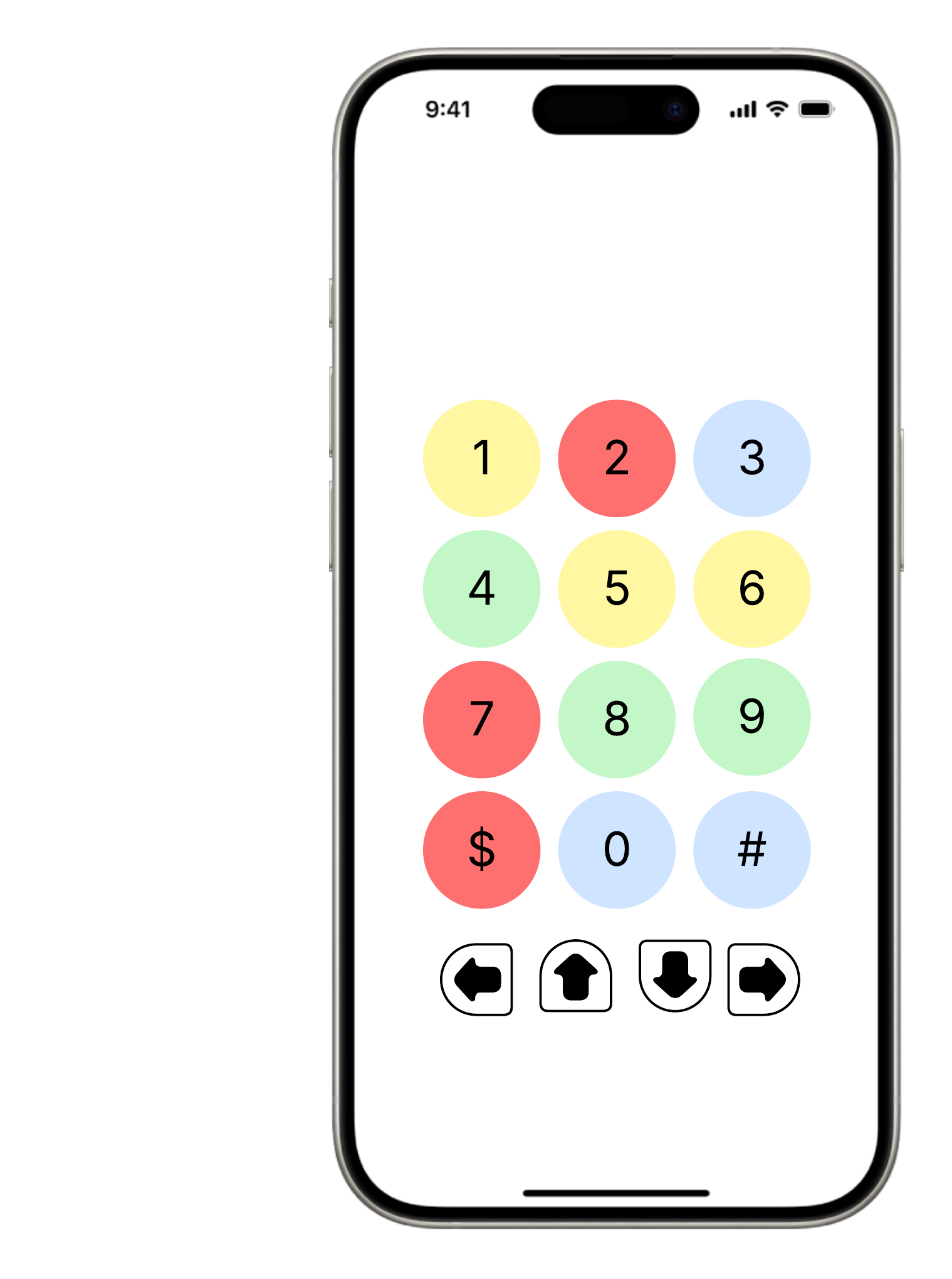

Mobile pad
Mobile number pad

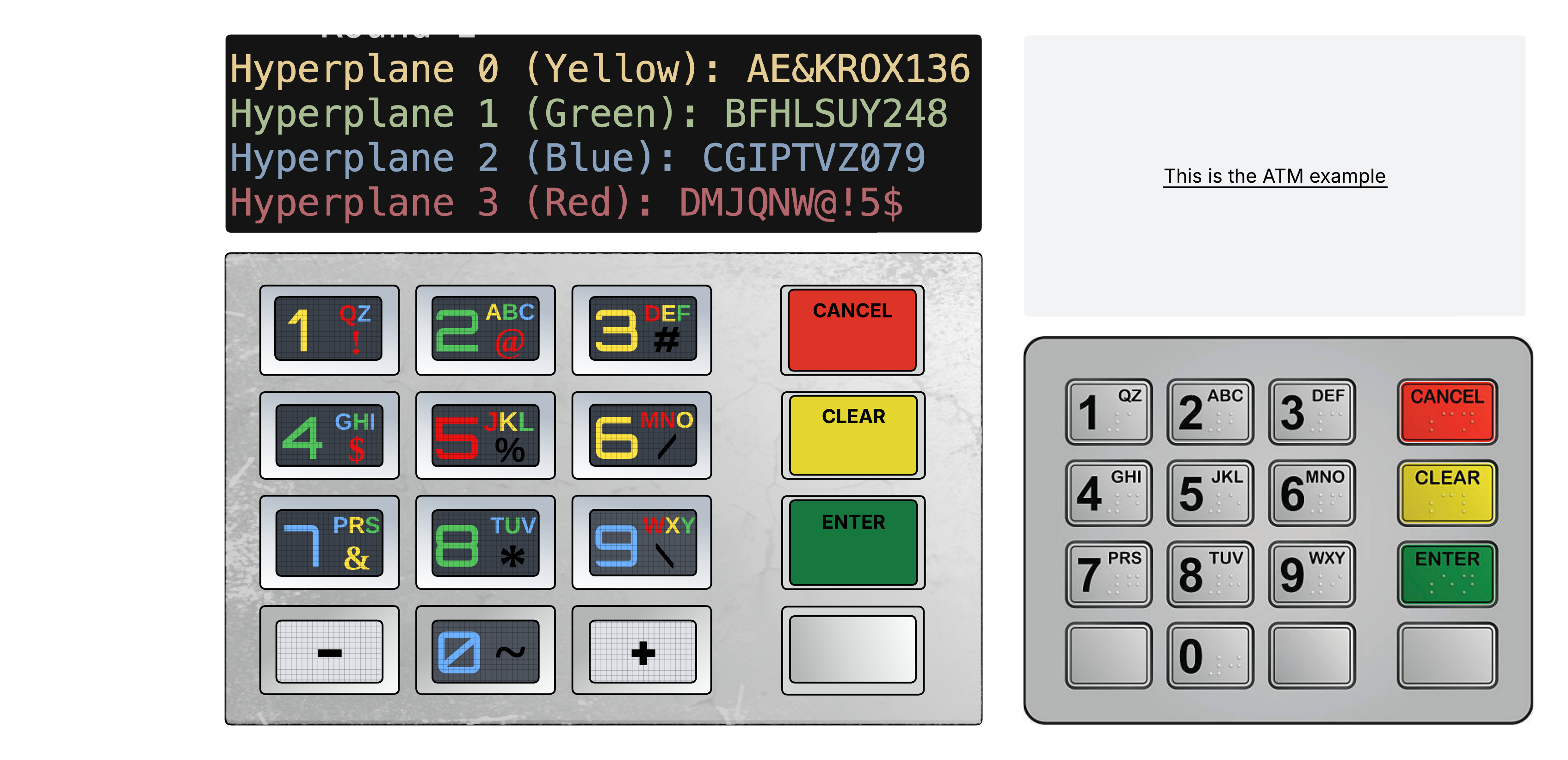

ATM UI
Kiosk / ATM

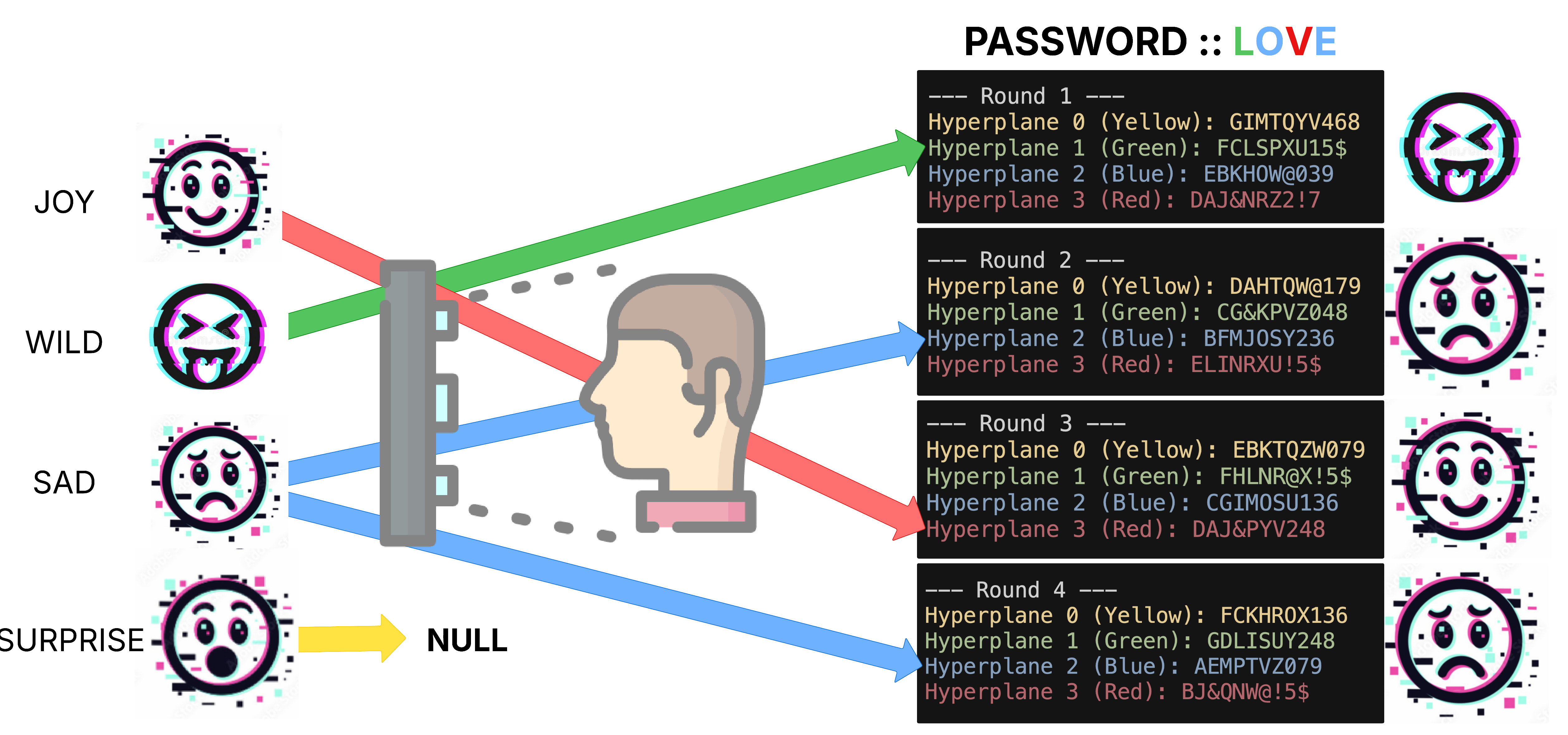

Emoji UI
Emoji symbols

API Reference

Integrate Cosmic with just three core calls. The snippets below show cURL, Python requests, and JavaScript fetch.

cURL
Python
JavaScript
Init Session
curl -X GET "https://api.colorkey.ai/api/init-session" \
  -H "Authorization: Bearer YOUR_API_KEY"
Get Visuals
curl -X GET "https://api.colorkey.ai/api/get-visualization\
?session_id=SESSION&selected_group=hearts" \
  -H "Authorization: Bearer YOUR_API_KEY"
Verify
curl -X POST "https://api.colorkey.ai/api/verify-colorkey" \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -d '{
        "session_id":"SESSION",
        "selections":["hearts","spades","clubs","diamonds"]
      }'

Endpoint Summary

GET /api/init-session

Creates a session — returns session_id, password_length, timestamp.

GET /api/get-visualization

Returns randomized symbol layout + animation data for that session.

POST /api/verify-colorkey

Validates user selections; returns {success,message,correct_count,total_count}.

GET /api/crypto-status

Lists active hash algorithms & key sizes (for compliance).

Integration Guide

  1. Call /init-session
  2. Render UI from /get-visualization
  3. POST selections to /verify-colorkey
  4. Grant/deny access based on success

Best practice: always use HTTPS, store API keys server-side, enable rate-limits, and monitor failed logins.
